950 Split

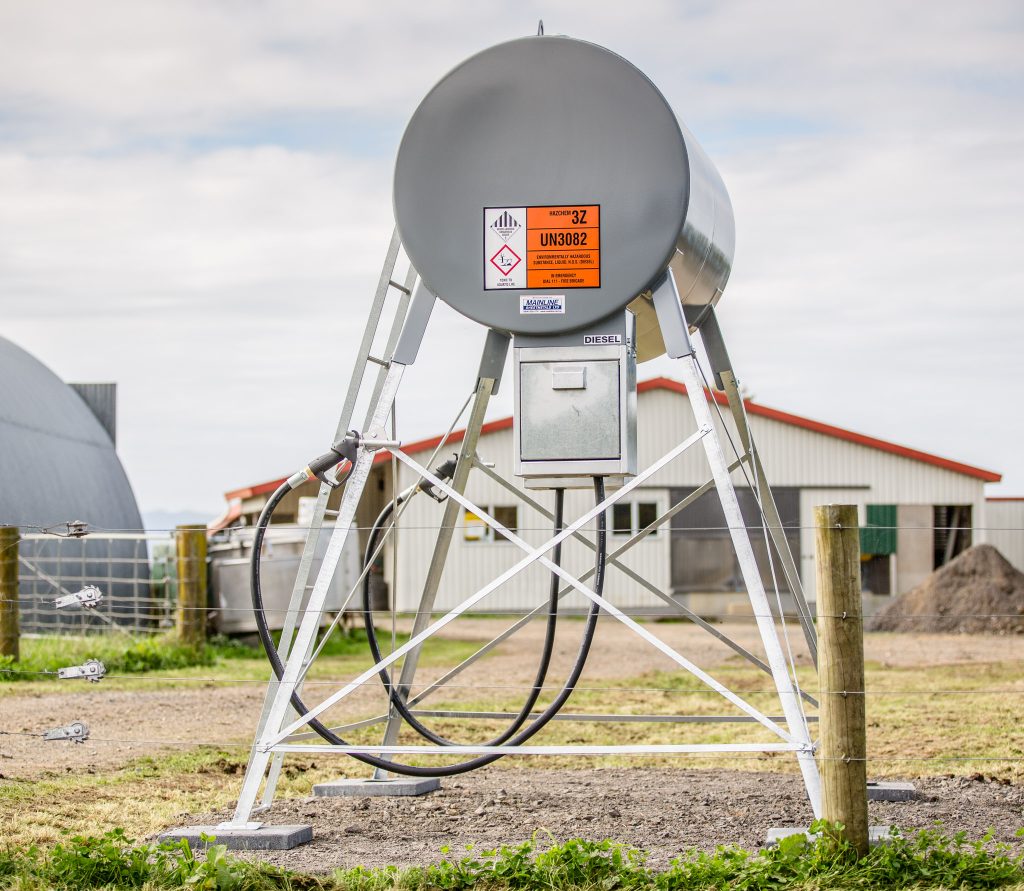

350 / 600 Litre Overhead Split Tank

  • Design Approval #: TNK0703
  • Mainline Fabricator #: FAB0018
  • Manufactured to AS1692-2006 Cat.2

Petrol and Diesel.  Gravity Flow.

3 mm Mild Steel tank, sandblasted, zinc primer, 2 pack epoxy undercoat + top coat.
Standard colours – Shuttle grey, White and Cream. Other colours by request.

Legs, ladder and stays hot dip galvanized.

Included with standard tank: NS 10 water block filter, 3m hose, manual nozzle, fittings, locking cover and Hazchem labels.

Split volumes e.g. 350 / 600 Litre, 200 / 750 Litre, 450 / 500 Litre etc

Optional extras

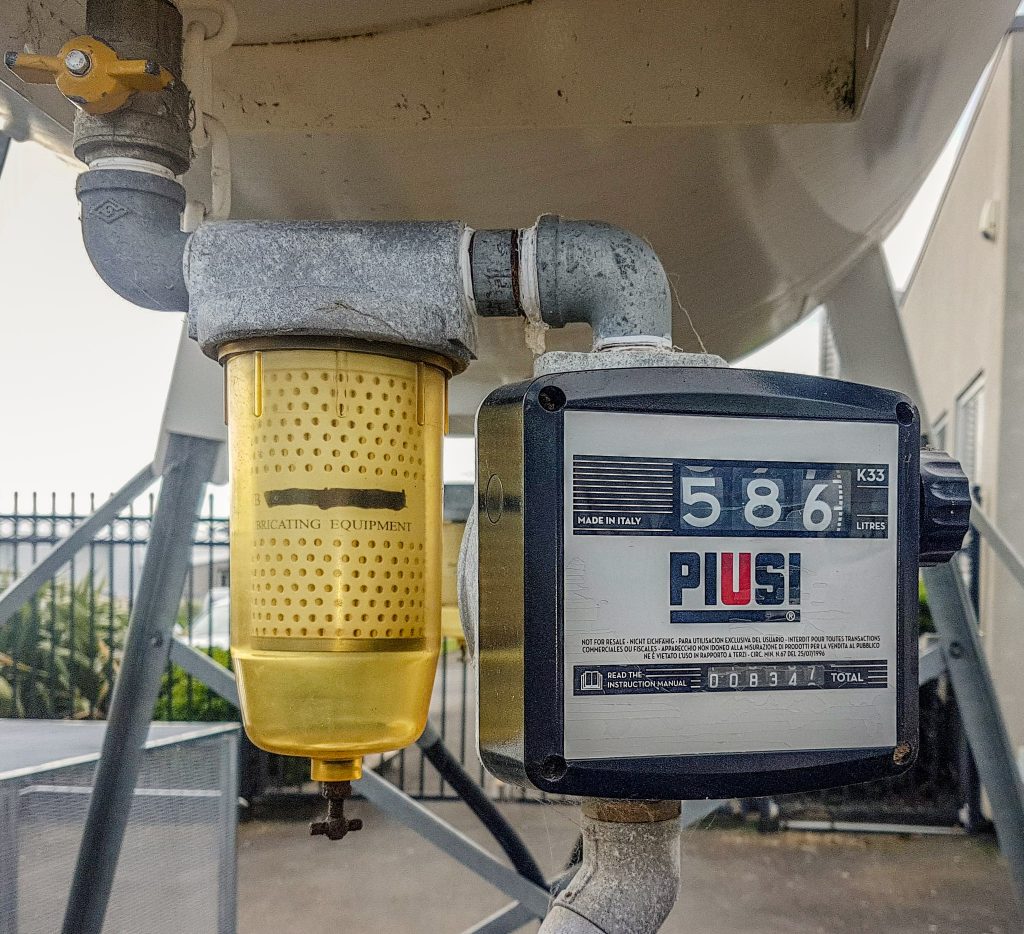

Flow meters, Piusi and Donaldson filter options, Platform ladder or Ladder step, Lock box.


$5400
excluding GST
ENQUIRE NOW

MATERIALS

  • TANK
    3mm Mild Steel
  • LEGS
    50 x 50 x 8mm Angle
  • LADDER
    2 Sections
  • STAYS
    Flat Bar 25 x 5mm
  • FOOTPLATES
    150 x 150 x 5mm

FITTINGS - Included with Tank

  • FILL and VENT
    50mm - Lockable
  • DIPSTICK
    2 x Anodised T Section - Calibrated
  • BALL VALVE
    2 x 25mm
  • LOCKING COVER
    2 x Stainless Steel
  • FILTER
    2 x NS10 Water Block
  • HOSE
    2 x 25mm x 3 metre swaged ends
  • NOZZLE
    Manual - 19 and 25mm
  • NOZZLE HOLDER
    2 x Stainless Steel
  • BOLT BAG
    Nuts, Bolts, Thread Tape, Instruction Sheet
  • HAZCHEM LABELS
    Petrol and Diesel
  • MANUFACTURERS PLATE
    Engraved with compliance information

DIMENSIONS

  • TANK
    1260mm x 1000mm Ø
  • HEIGHT TO OUTLET
    1700mm
  • OVERALL HEIGHT
    2850mm
  • FOOTPRINT
    2200 x 2200mm
  • CONCRETE PAD
    2400 x 2400mm x 150mm thick
  • FOOTINGS
    500 x 500 x 300mm at each leg
  • TANK VOLUME
    350 / 600 Litres
  • SAFE FILL LEVEL
    333 / 575 Litres

OPTIONAL

  • FILTER UPGRADE
    Piusi Water Captor or Donaldson Filtration
  • FLOW METERS
    Piusi K33 Diesel or Petrol

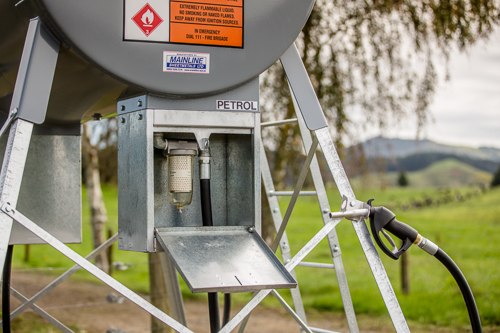

  • LOCK BOX
    2mm Galv. steel lockable box
  • PADLOCKS
    Abus 83/45
  • PLATFORM LADDER
    Handrails and Platform
  • LADDER STEP
    Clip on step
  • EXTRA HOSE
    Per metre
