3000 Litre

  • Design Approval #: TNK11017
  • Mainline Fabricator #: FAB0018
  • Manufactured to AS1692-2006 Cat.4
  • Tank design and fabricator approval registered with WorkSafe

Diesel only

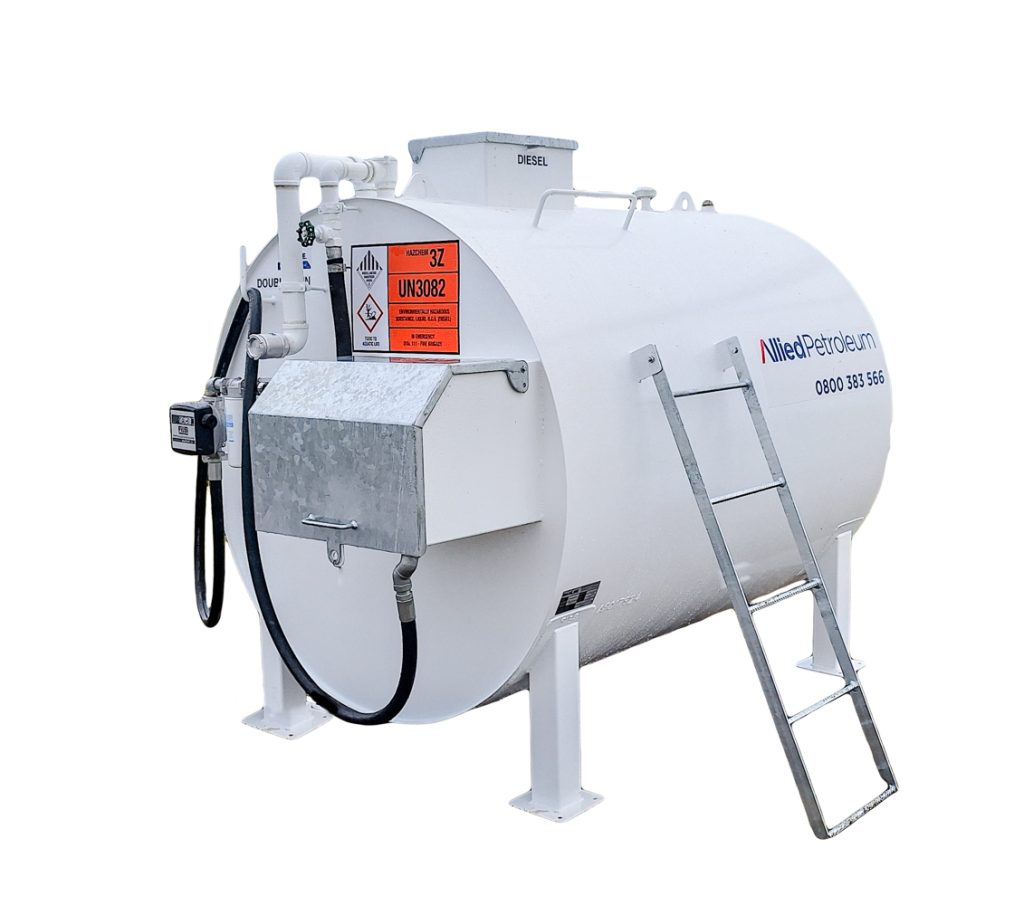

3000 Litre Double Skin Tank – Diesel Only

Mainline double skin tanks are a primary tank within an outer tank. This double skin forms secondary containment for the primary tank.  The space between the inner and outer tank is the interstitial space.

Mainline tanks can be connected to boiler and/or generator systems or fitted with a variety of pump options to suit your needs.

Pump options include: hand pumps, 12-volt, 230 volt, Honda petrol powered pumps and Piusi cube 56 and 70 dispensers. Fuel management systems are available and include the Piusi MC70 management system with user keys and software, Piusi Cube 70 B.Smart cloud base management system and Everlink cloud based system. Mainline’s double skin tanks for diesel are New Zealand made and have WorkSafe registered design numbers.  All comply with secondary containment regulations.

PRICED FROM
$8600
excluding GST
ENQUIRE NOW

MATERIALS

  • TANK - Inner & Outer Skin
    3mm Mild Steel
  • LEGS
    100 x 100 x 3mm
  • FOOTPLATES
    200 x 200 x 5mm
  • FILL and VENT
    50mm
  • 15 Litre Top Spill Box
    Lockable
  • Interstitial Vent
    25mm
  • Interstitial Port
    40mm

FITTINGS - Included with Tank

  • HAZCHEM LABELS
    Diesel
  • MANUFACTURERS PLATE
    Engraved with compliance information

DIMENSIONS

  • TANK - Outer Skin
    1820mm x 1500mm Ø
  • HEIGHT TO OUTLET
    1700mm
  • OVERALL HEIGHT
    1800mm
  • FOOTPRINT
    1760 x 1380mm
  • CONCRETE PAD
    2100 x 2500 x 150mm
  • TANK VOLUME
    2953 Litres
  • SAFE FILL LEVEL
    2800 Litres

OPTIONAL

  • FILTER OPTIONS
    NS10 Water block
  • Piusi Water Captor
  • Donaldson Filtration
  • PUMP OPTIONS
    Fillrite rotary hand pump
  • Honda petrol powered
  • Electric (12V or 230V)
  • Other pump options available
